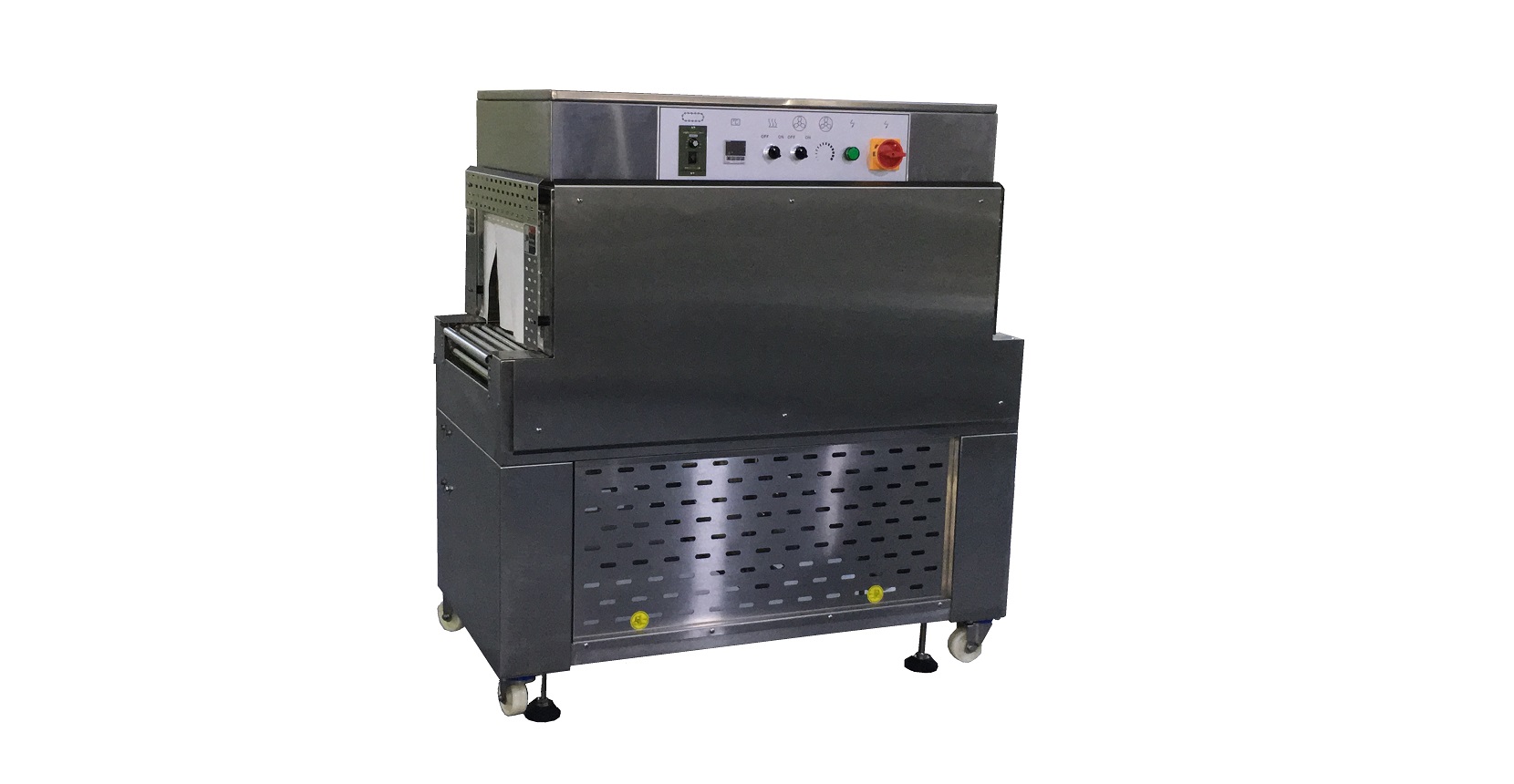

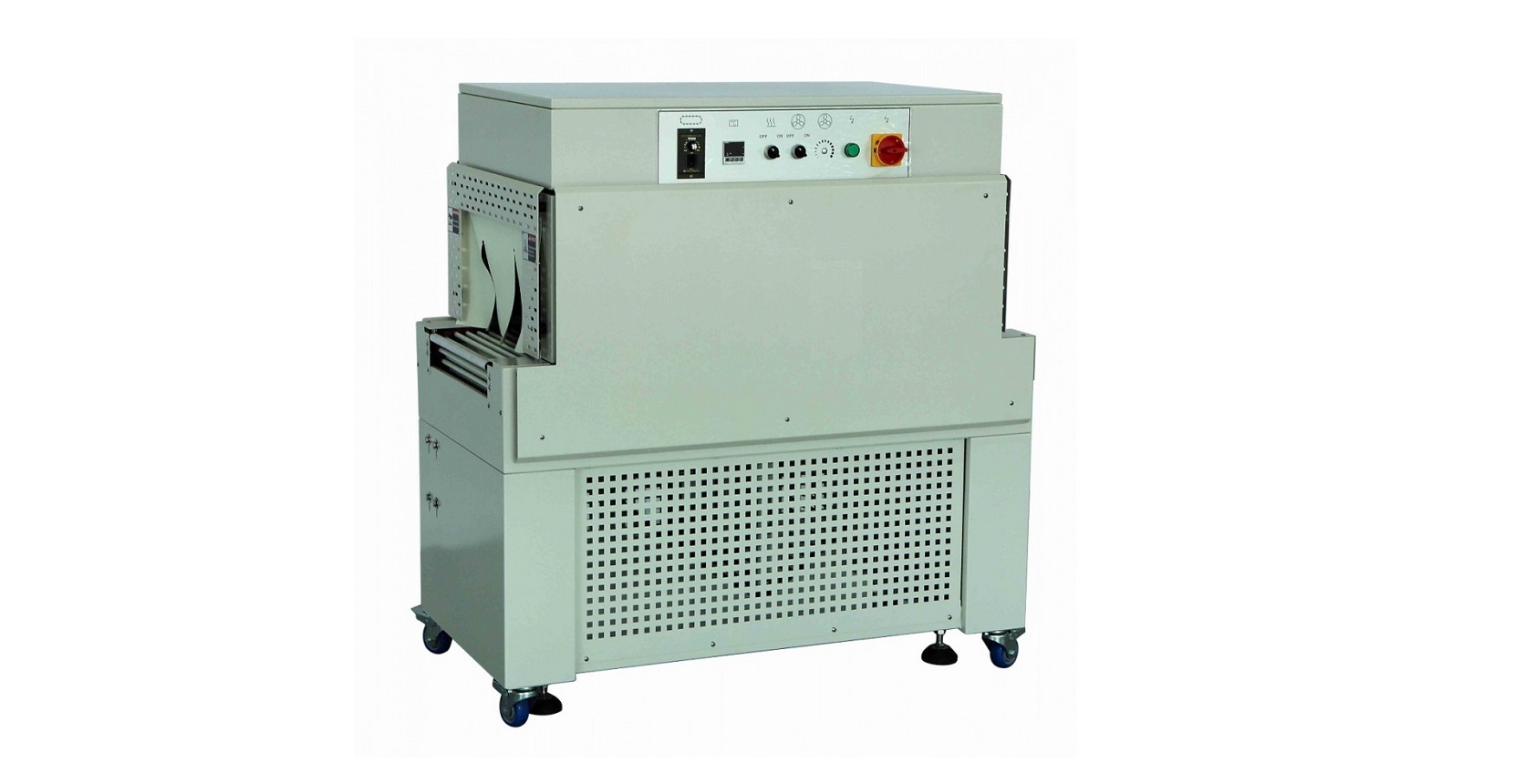

Standard Shrink Tunnel

Brand:Jiaji


Product Description:

This standard heat shrink tunnel provides an economical solution for a wide range of products in different sizes and shapes in a simple way. It can be widely matched with different kind of automatic or semi-automatic sealers for completing a whole packing line.



Feature:

l  Conveyor speed is driven by a variable speed motor for easy adjustment.

l  Use of stainless steel heating tube

l  Thermostat used to ensure temperature consistency

l  Equipped with live roller. Stainless steel and teflon mesh is available if necessary

l  An economical packing solution


技术参数

Model

LB-101

LB-201

Machine size   LxWxH  (mm)

900x670x1290

1200x670x1290

Chamber size   LxWxH (mm)

700x420x250

1000x420x250

Packing size   LxWxH (mm)

340x200

370x230

Voltage

380V/3PH

380V/3PH

Power   consumption (kW)

6kW

12kW

Power (V)

2.5kW

3kW

Conveyor   speed (m/min)

0-15

0-15
