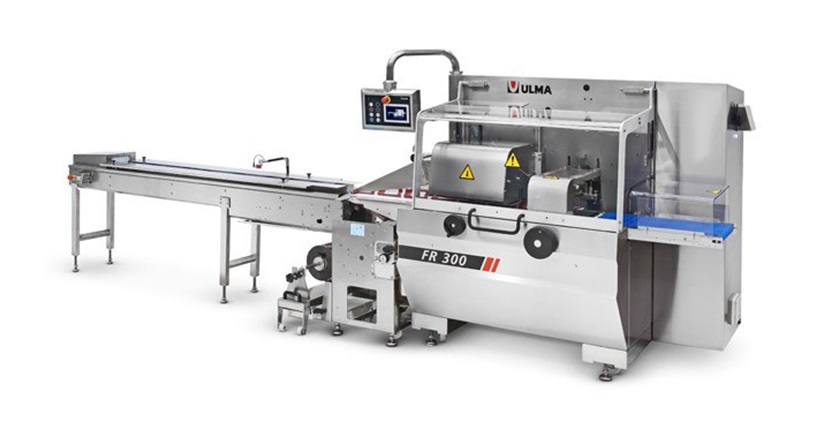

Flow Pack Wrapper FR Series - ULMA

Product Brand: ULMA



Product Introduction:

ULMA, as a leader in packaging manufacturers, is always taking a step forward and constantly updating its catalog with the latest innovations and the most advanced technologies. As a result of these innovations, it is allowed to increase packaging speeds faster than previous models. This series is also equipped with our latest motion control technology, including industrial PC-based control, which provides the machine with the following features higher-level models. The FR200 series is manufactured in accordance with the unique ULMA structural strength, quality and reliability. These features, as well as ease of use and ergonomics ensure that the FR series meets the needs of a wide range of applications.



Key Features:

·       Cantilever structure for easy hygiene;

·       Operation direction from left to right;

·       Rotating cross-sealing jaws;

·       3 pairs of rollers for longitudinal film stretching and sealing;

·       Self-centering reel stand equipped with braking system;

·       Feed conveyor 2 meters long;

·       Adjustable film folding;

·       The machine control system adopts a 7-inch UPC industrial PC;

·       Human-machine interface through a 7-inch color touch screen. Provides graphical visualization of parameter settings, alarm identification, and Ethernet connection visualization for remote interaction;



Product Applications:

Fruits and vegetables, seafood, fresh meat, etc.


技术参数

Model

FR100

FR200

FR305

FR400

Maximum Speed

120 pack/min

150 pack/min

250 pack/min

1000 pack/min

Package Length

90-625mm

125-625mm

125-625mm

125-625mm

Product Length

90-500mm

90-500mm

90-500mm

90-500mm

Product Width

10-250mm

10-250mm

10-250mm

10-250mm

Product Height

5-150mm

5-150mm

5-150mm

5-150mm
