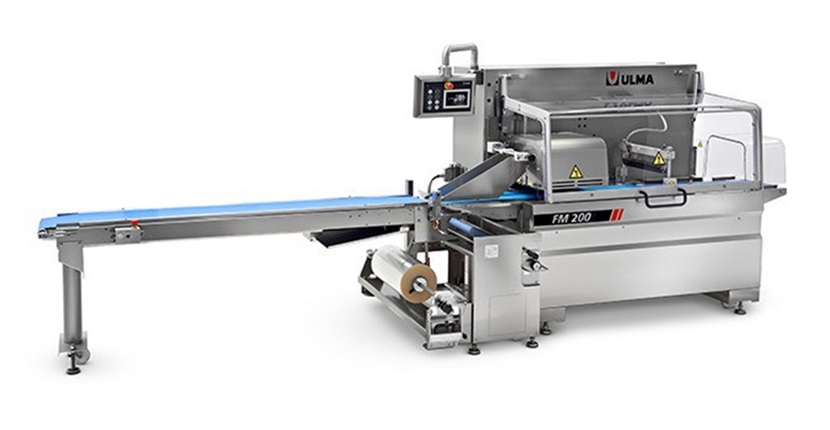

Flow Pack Wrapper FM Series-ULMA

Product Brand: ULMA



Product Introduction:

The FM series is a machine for packaging fresh food in a flow pack (pillow pack) in a stylish package with three closures. The new FM series is the result of ULMA's commitment to innovation and technological development. This series of machines offers improved performance and ease of use. The new FM features strength, reliability and simplicity of operation. In addition to these well-known characteristics of ULMA, the new model also features greater flexibility and versatility, as well as easier operation thanks to its touch screen control panel. The huge flexibility, proven reliability and innovative technology applied to the new FM series ensure an ideal packaging machine for a wide range of applications.



Key Features:

·       Electronic packaging machine driven synchronously by independent motors;

·       The machine is mounted in cantilever form on a stainless steel frame, which reduces dirt and dust accumulation and allows for optimal cleaning and hygiene. It also provides easy access to mechanical and electrical components. ;

·       Feed conveyor, 2 meters long and made of stainless steel (standard configuration);

·       Easily accessible reel rack simplifies the loading of heavy reels. It is equipped with an electric film unwinding system for optimal machine operation;

·       Electric height adjustment of the longitudinal sealing system for quick and easy setup;

·       The box-type mobile cross-sealing station contains an overpressure system to guarantee high-quality sealing;

·       The sealing head is equipped with an independent motor to optimize the cycle time and achieve smaller and more precise packaging lengths;

·       The touch screen control panel allows simple and intuitive access to machine parameters. It offers various parameter settings for each product (bag length, speed, speed, sealing time, etc.);



Product Applications:

Fruits and vegetables, seafood, fresh meat, etc.


技术参数

Model

FM200

FM200

FM200

Maximum Speed

55 pack/min

80 pack/min

25 pack/min

Film Width

700mm



Product Length

100-∞mm

100-∞mm

30-500mm

Product Width

10-300mm

70-300mm

50-250mm

Product Height

10-120mm

10-225mm

5-100mm
