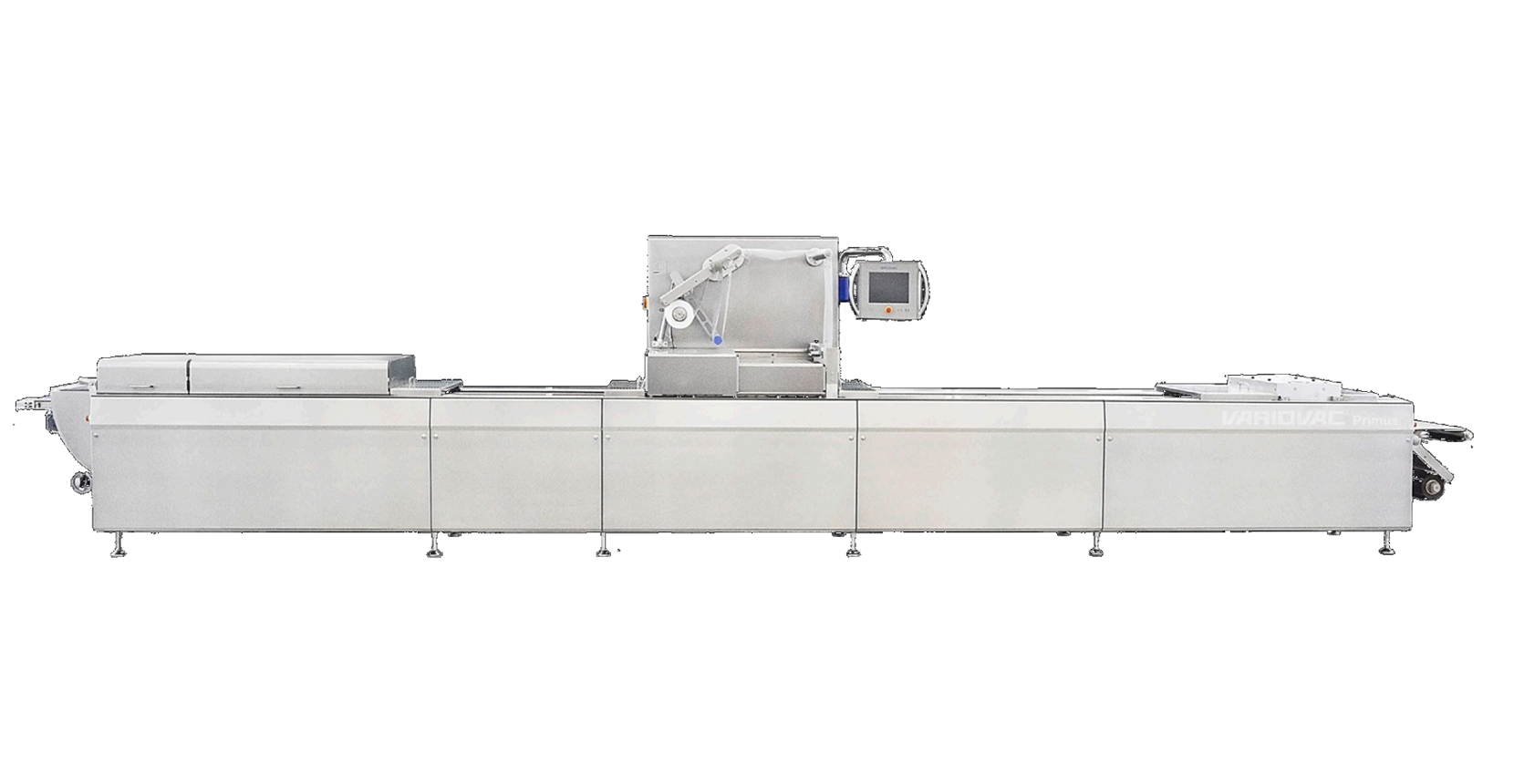

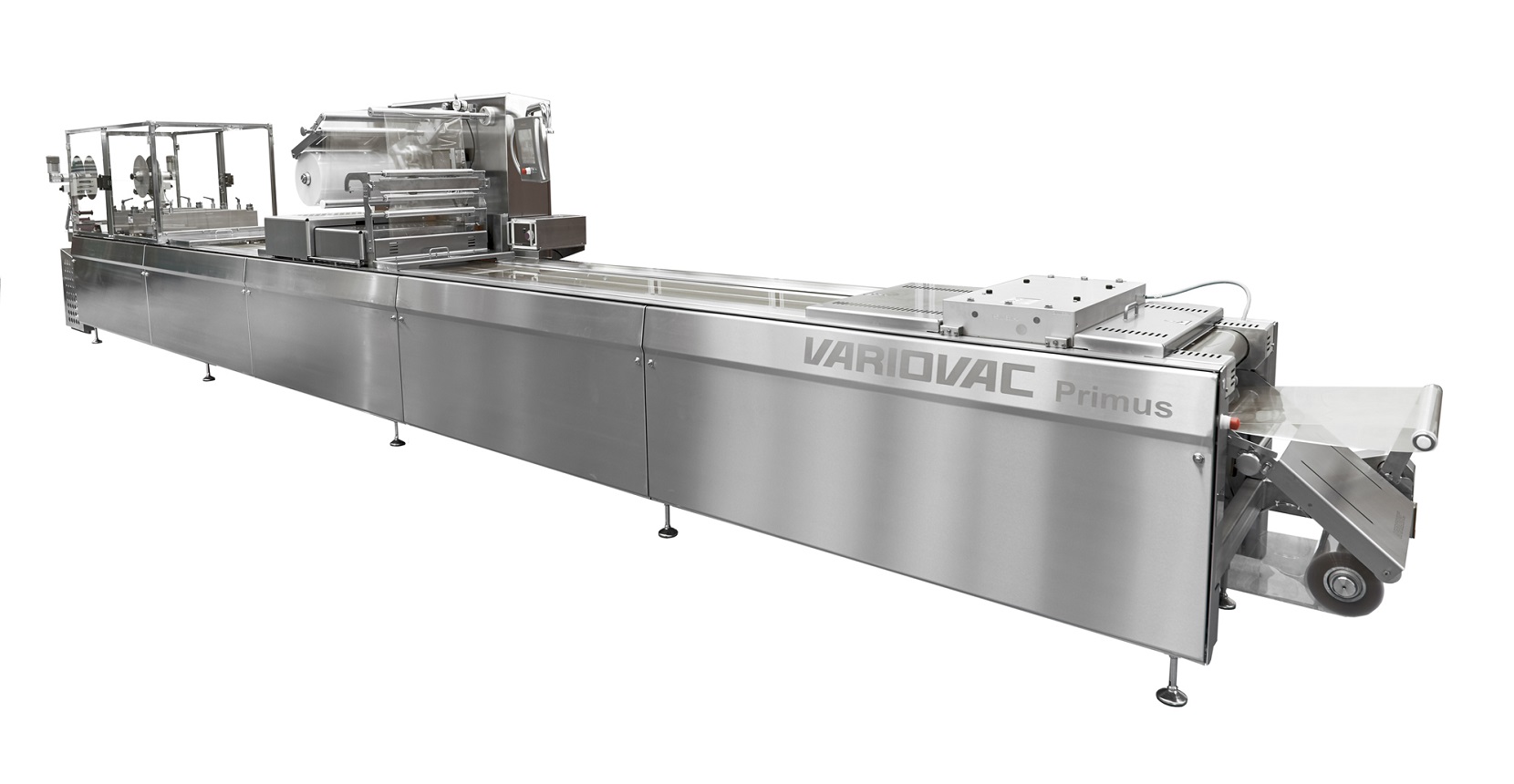

Primus

Brand: Variovac


Product Description:

Standard on every VARIOVAC Primus, the RAPIDAIRSYSTEM® achieves up to 60% higher output than traditional systems for applications with either semi-rigid or flexible films. This innovative system produces high-quality forms and seals even at speeds over 20 cycles/min.



By eliminating the need for preheating, the RAPIDAIRSYSTEM® even frees up space in the loading area. A 4-point pneumatic lifting system further improves the forming and sealing precision on the VARIOVAC Primus. To top it all off, customers have the option of servo-powered lifting and cutting systems to further improve the precision of the RAPIDAIRSYSTEM®.



Application:

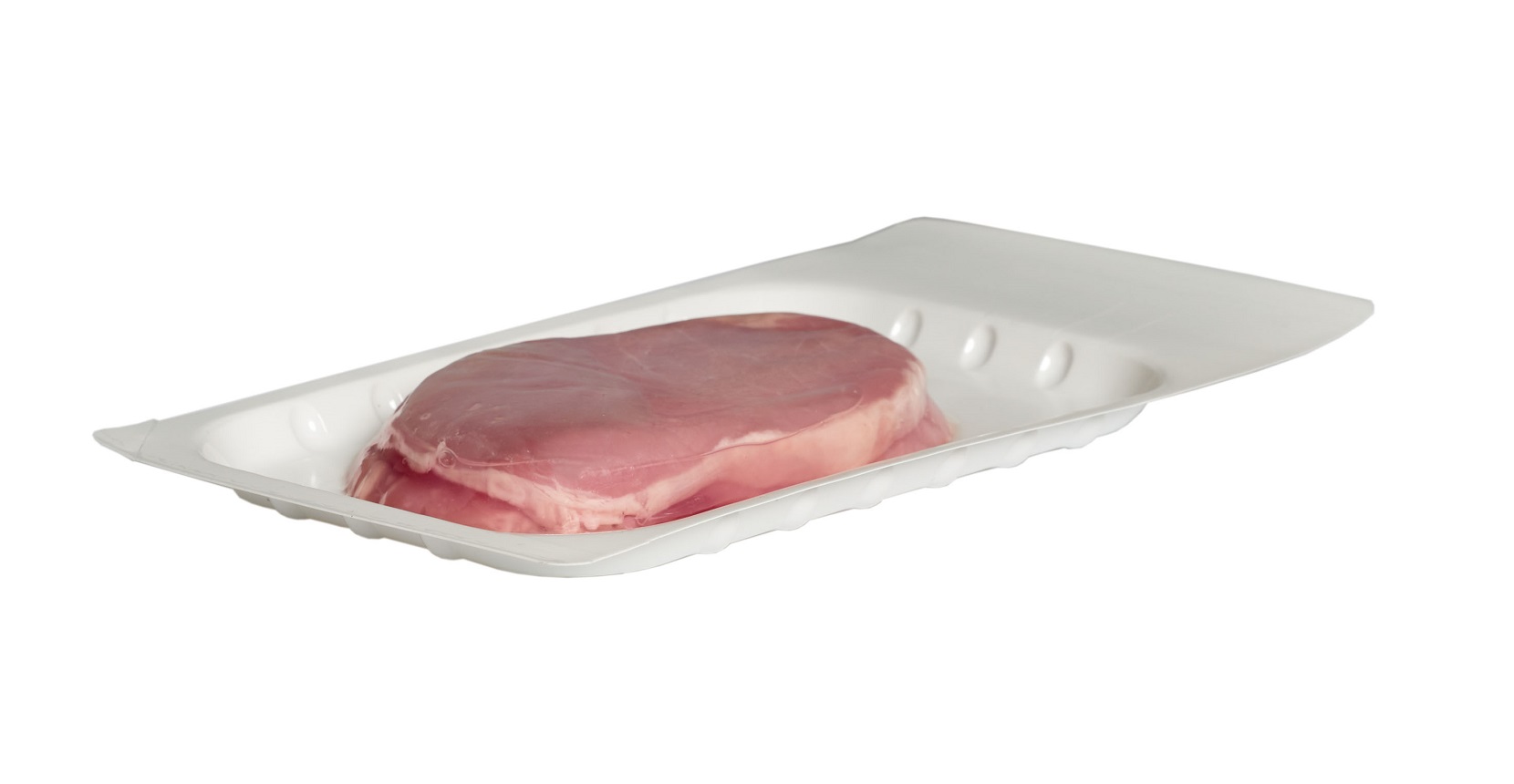

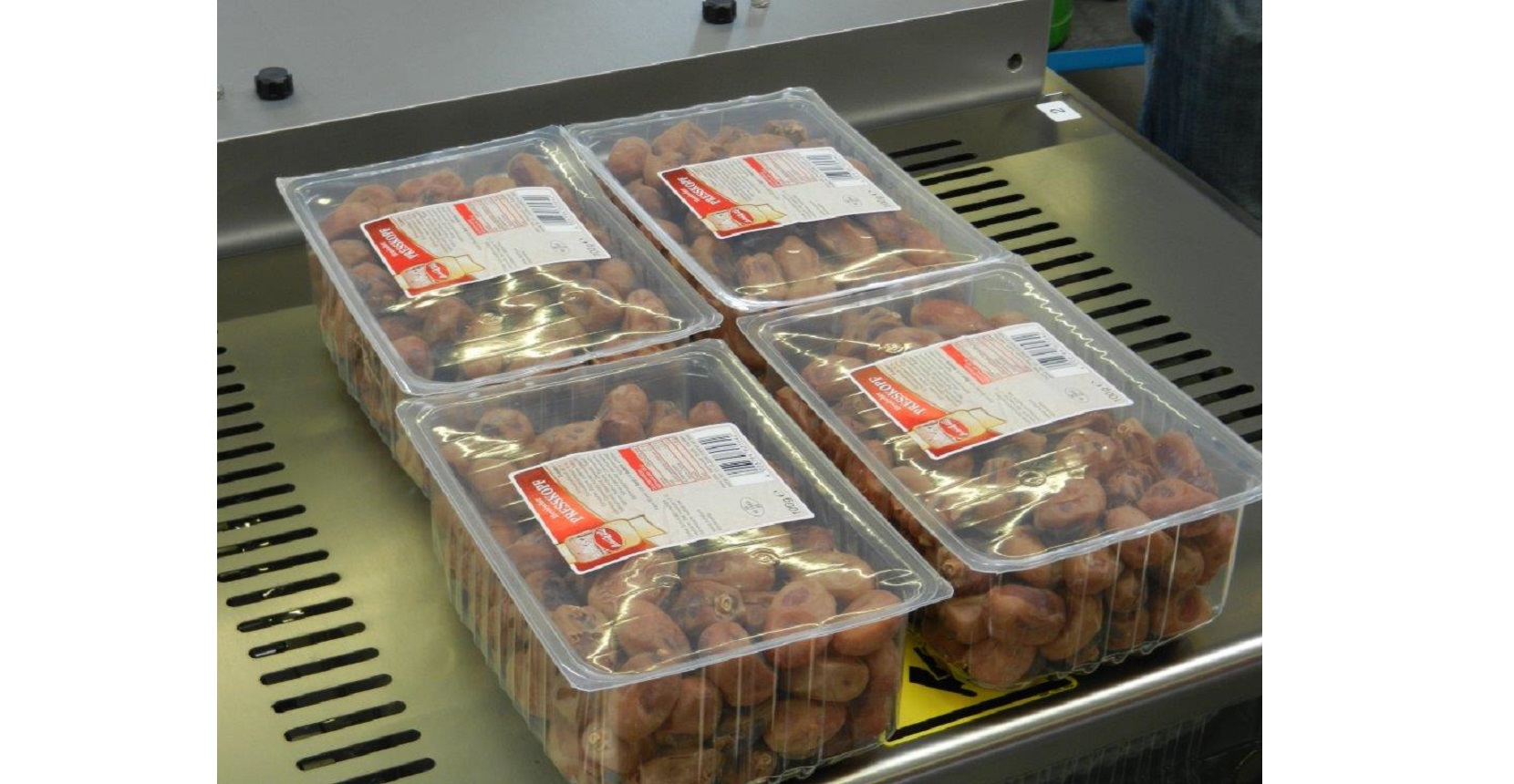

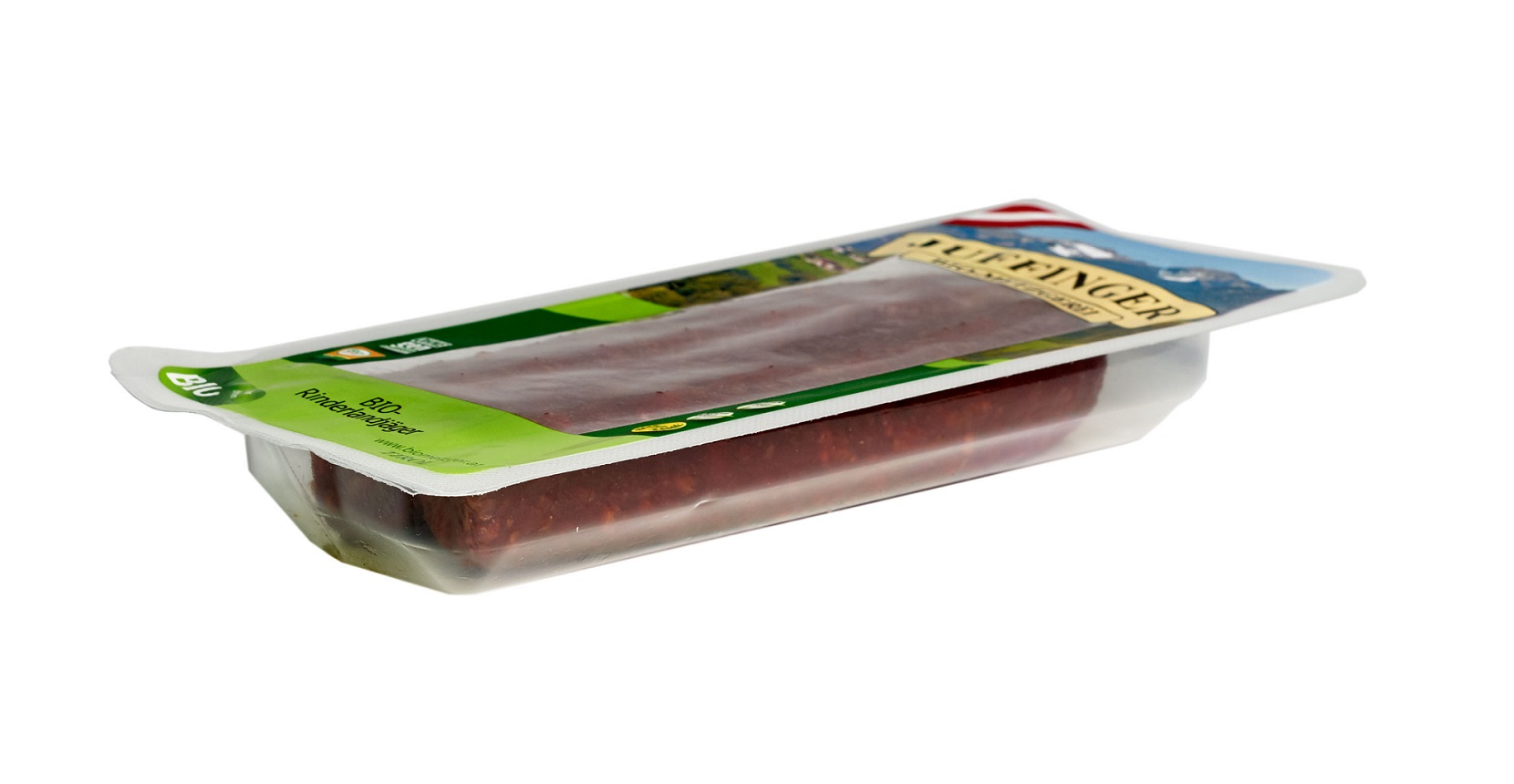

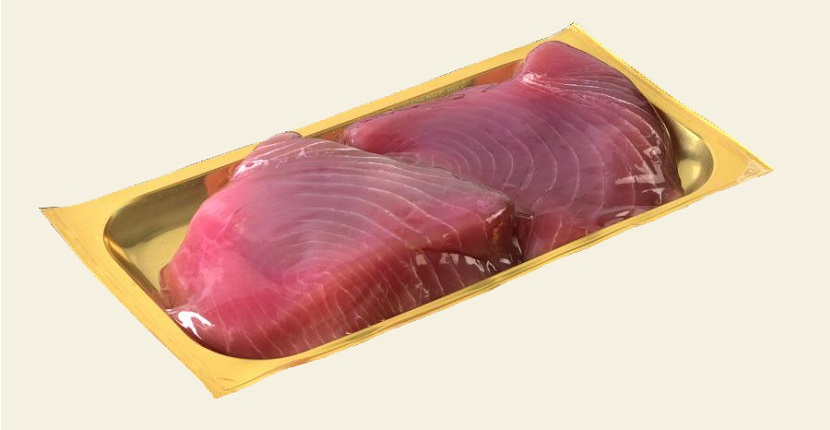

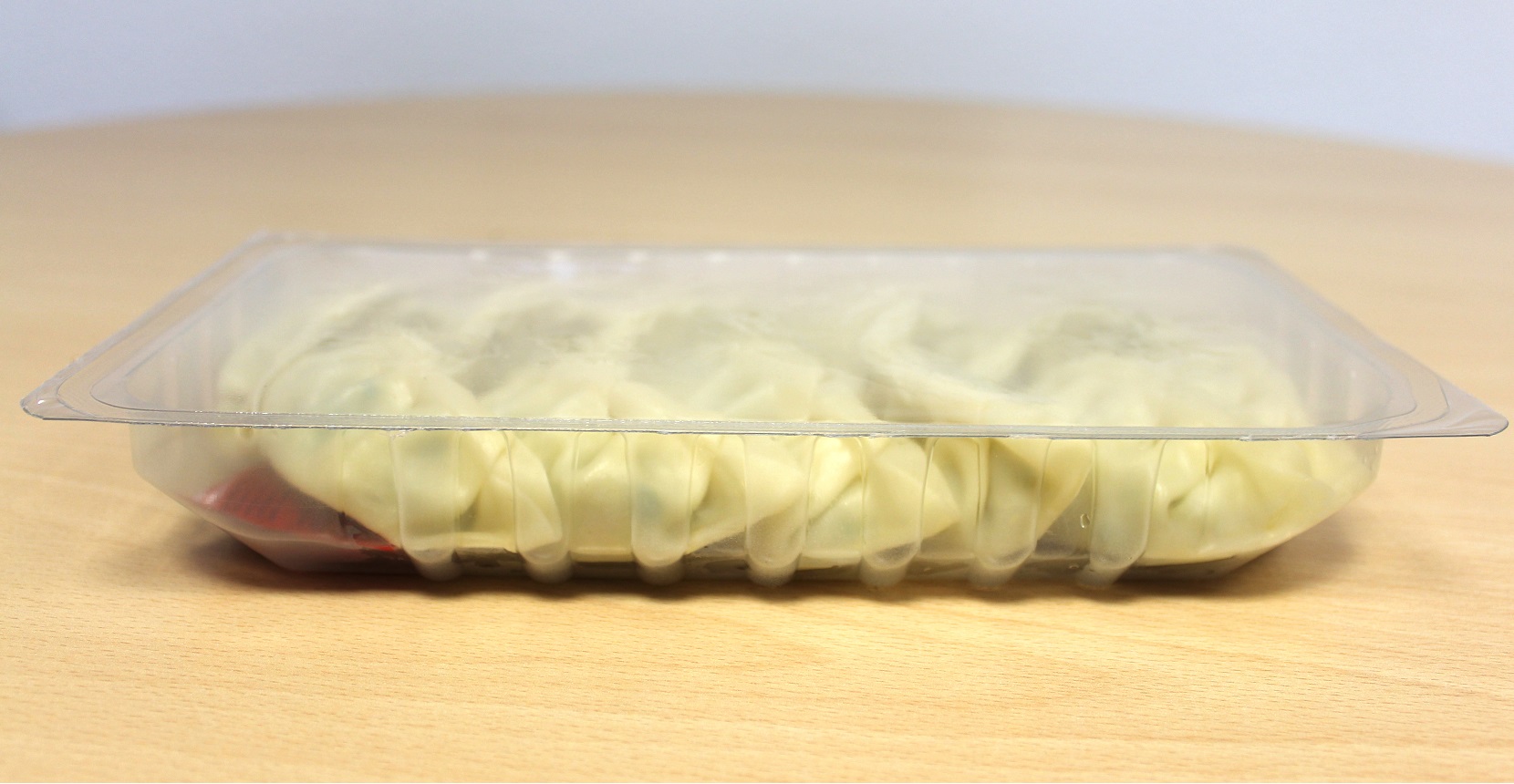

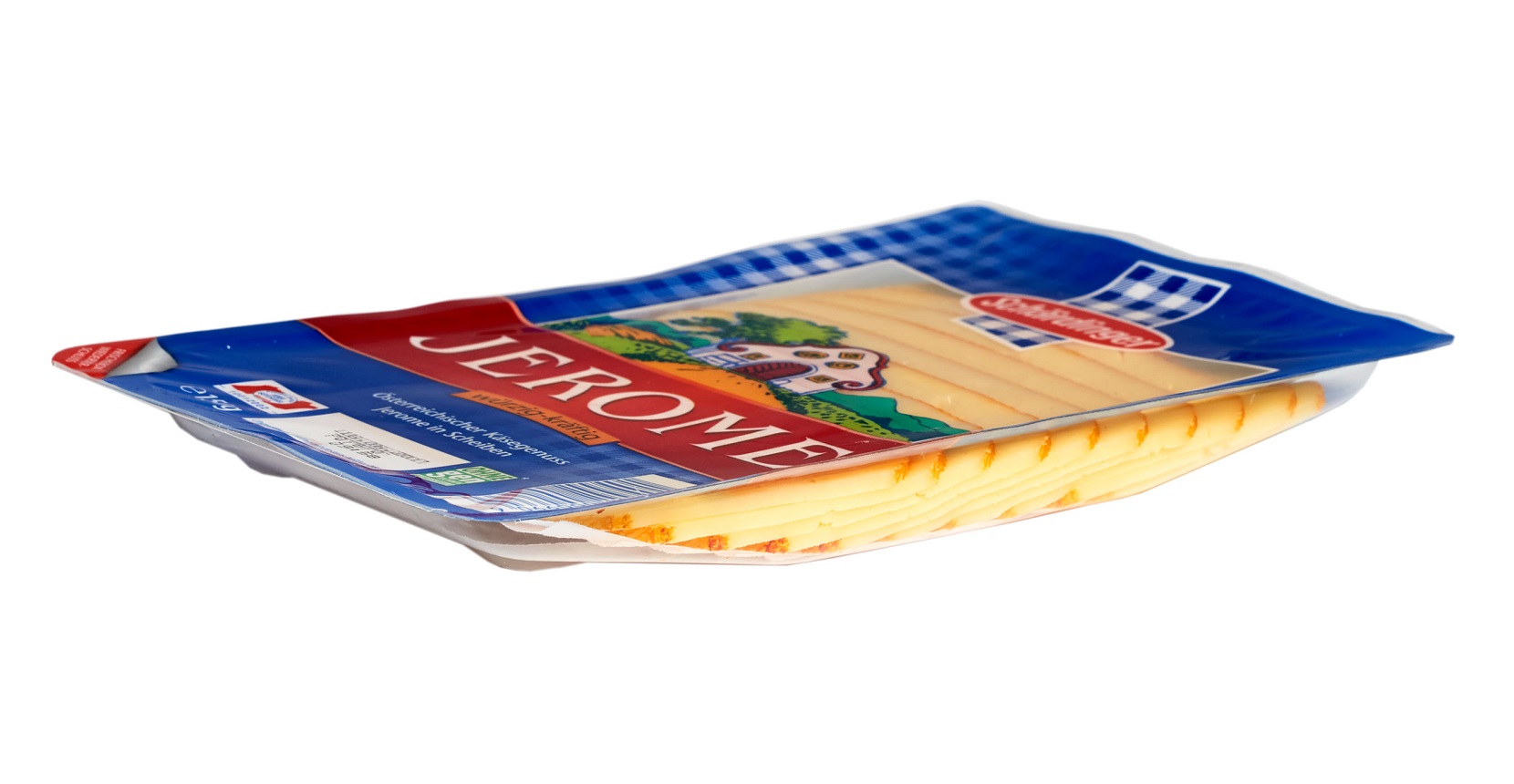

l   Food: Frozen or fresh steak, Lamb, Pork, Sea food, Vegetable etc.

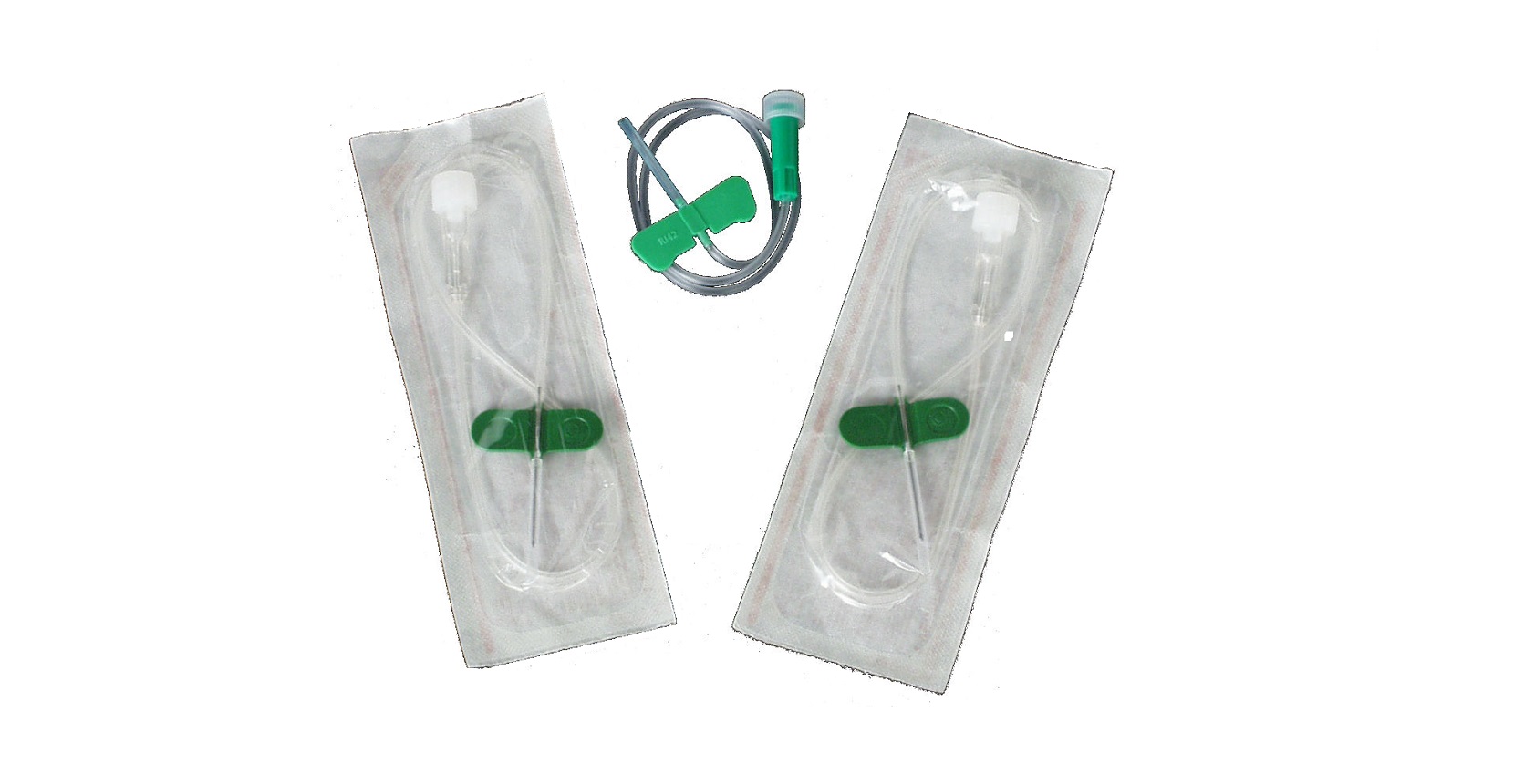

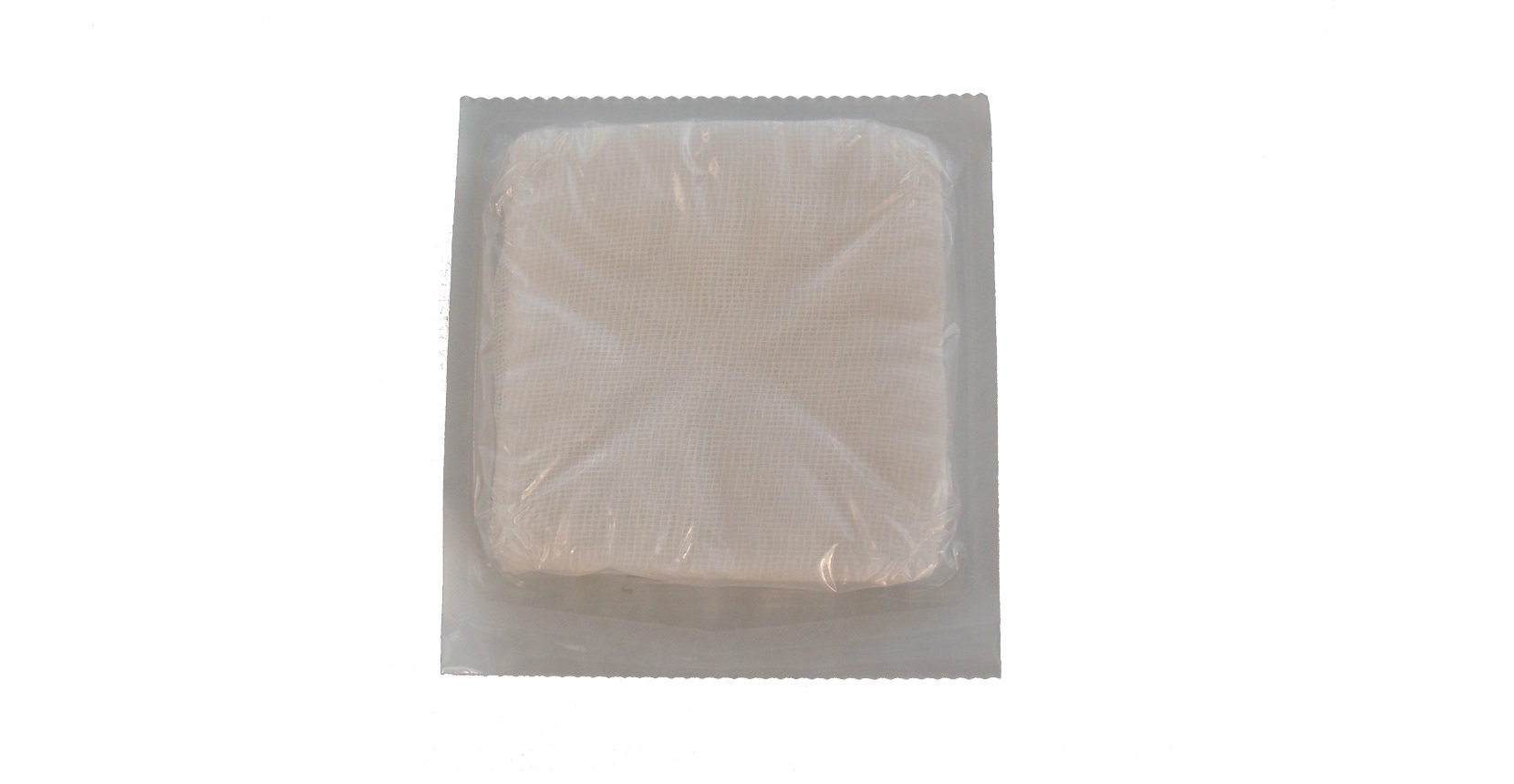

l   Non-food: Circuit, Hardware, Medical etc.


技术参数

Model

Primus

Application

Flexible,   Rigid MAP,Skin

Frame Length

5~14m,1,2,4,5,6m

Advance

100~650mm,max.800mm   for optional

Pump

Busch

Forming depth

Max. 135mm

Film   width

320~560mm

Speed

up to 20   cycle/min
