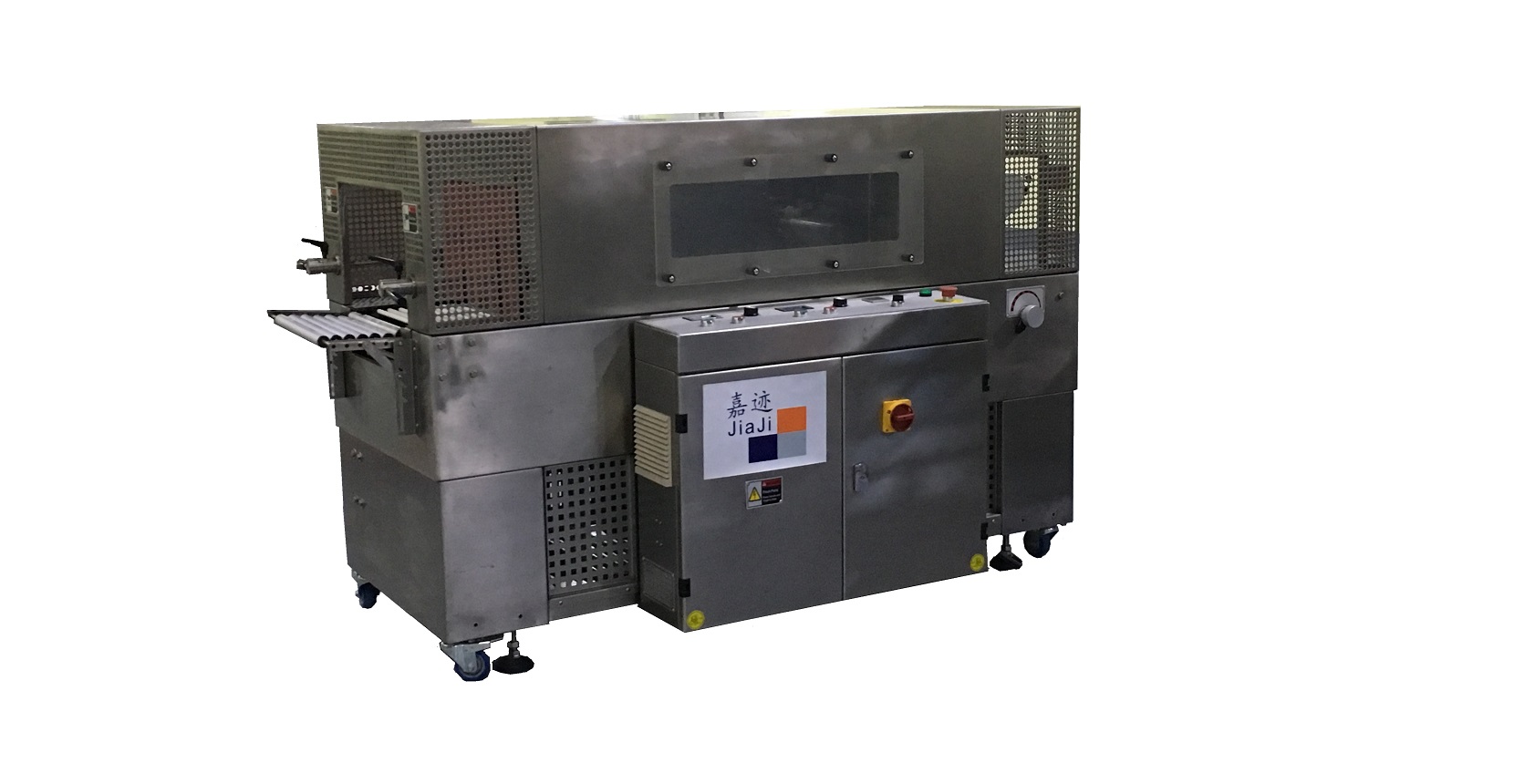

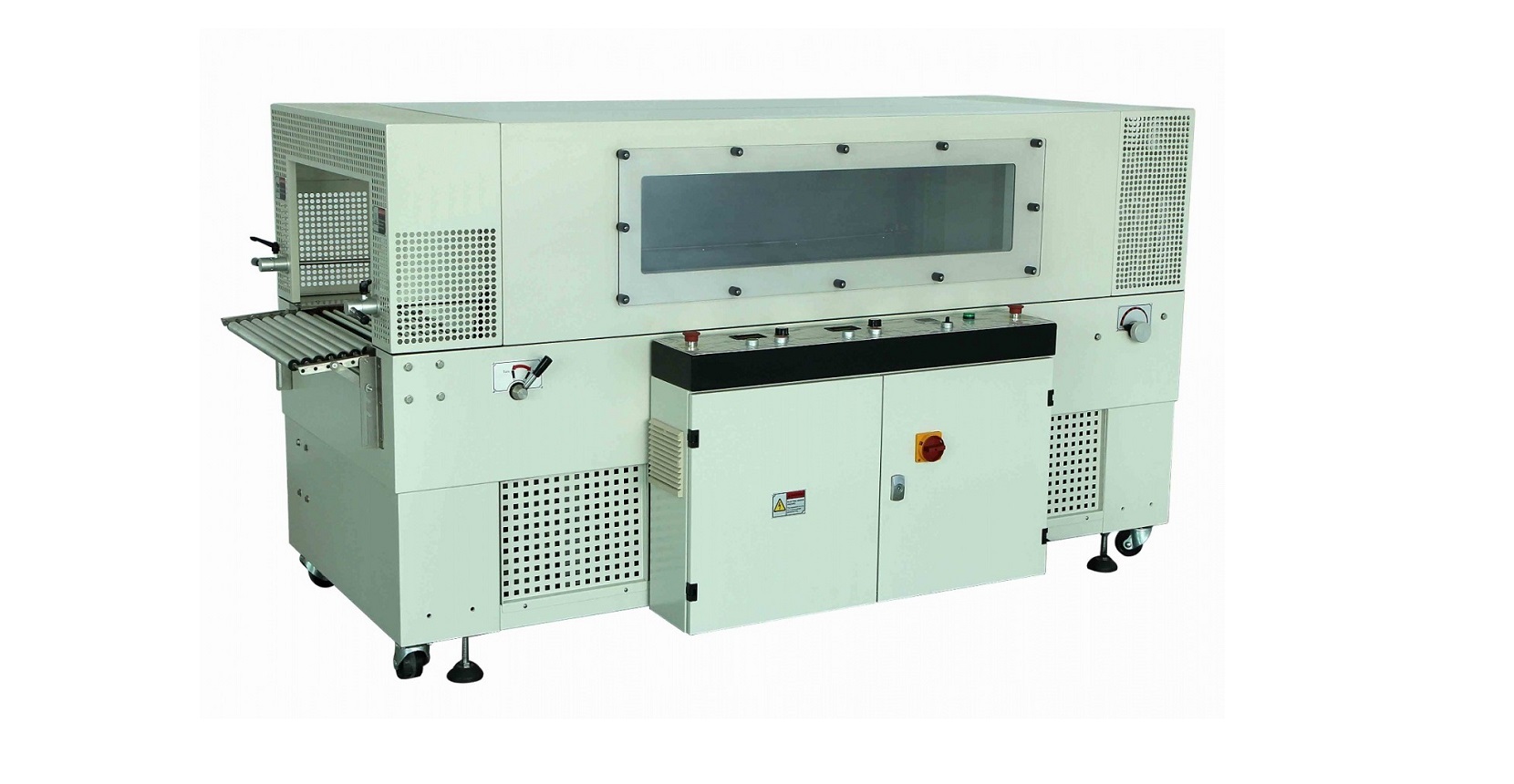

Circulation Shrink Tunnel

Brand:Jiaji


Product Description:

T-Series shrink tunnel produces consistent uniform film shrink using heavy-duty, variable speed blowers and heating elements. This combination creates a recirculating air system that forces air to all package surfaces. Independent control systems regulate temperature, air velocity and conveyor speeds. The efficient heating system on each machine reduces the amount of electricity and the cost of operation.



Feature:

l  Turbine heat circulation system design

l  Reduce heating time

l  Lower heat lost

l  Diminish the use of electricity

l  The lateral air flow directions are adjustable


技术参数

Model

T-61

T-62

T-63

Machine sizeLxWxH(mm)

1450x860x1080

1700x900x1160

2200x1070x1230

Chamber size LxWxH(mm)

1100x400 x200

1200x440x280

1700x540x350

Packing size LxWxH (mm)

280x150

300x230

400x300

Voltage

380V / 3PH

380V / 3PH

380V / 3PH

Power Consumption (kW)

12kW

14kW

16kW

Conveyor speed(m/min)

0-30

0-30

0-30
