Brine Preparation

Brand: Nowicki


Product Description:

Designed for brine injection of meat, with bone or boneless, meat products, whole poultry and fish and fish fillets.

l  ·latest, easy to assemble and disassemble injection head and easy to change for injection head with Ø1.6,2,2.5,3mm needles

l  · Injection head and conveyor’s servo-drive systems

l  ·Unique removal system of brine overflow from surface of raw material

l  · Ability to inject of the raw material with different thickness from 30 to 80mm

l  ·Continuous measurement of brine temperature

l  ·Unique system of injection head hygiene, reducing to the minimum time of cleaning internal part of injection head


技术参数

Type


MS-250

MS-400

MS-1000

MS-1500

MS-2000

Container capacity

dm³

250

400

1000

1500

2000

Installed power

kW

2

2

4.5

4.5

6

dimensions L/W/H

mm

1380/1050/1850

1380/1150/1930

1920/1420/2100

2200/1600/2290

2200/1810/2655

Weight

kg

140

180

370

470

600



Type


MS-400CH

MS-1000CH

MS-1500CH

MS-2000CH

Container capacity

dm³

400

1000

1500

2000

Installed power

kW

2.5

5

5

6.5

Cooling yield of cooling unit

kW

4.3

8.9

15.2

20

Total installed electric power of   refrigerating unit

kW

~2.5

~4.3

~8.2

~13

dimensions L/W/H

mm

1700/1150/1950

2280/1650/2230

2600/1830/2290

2595/1935/2655

Weight

kg

900

1100

1200

1650

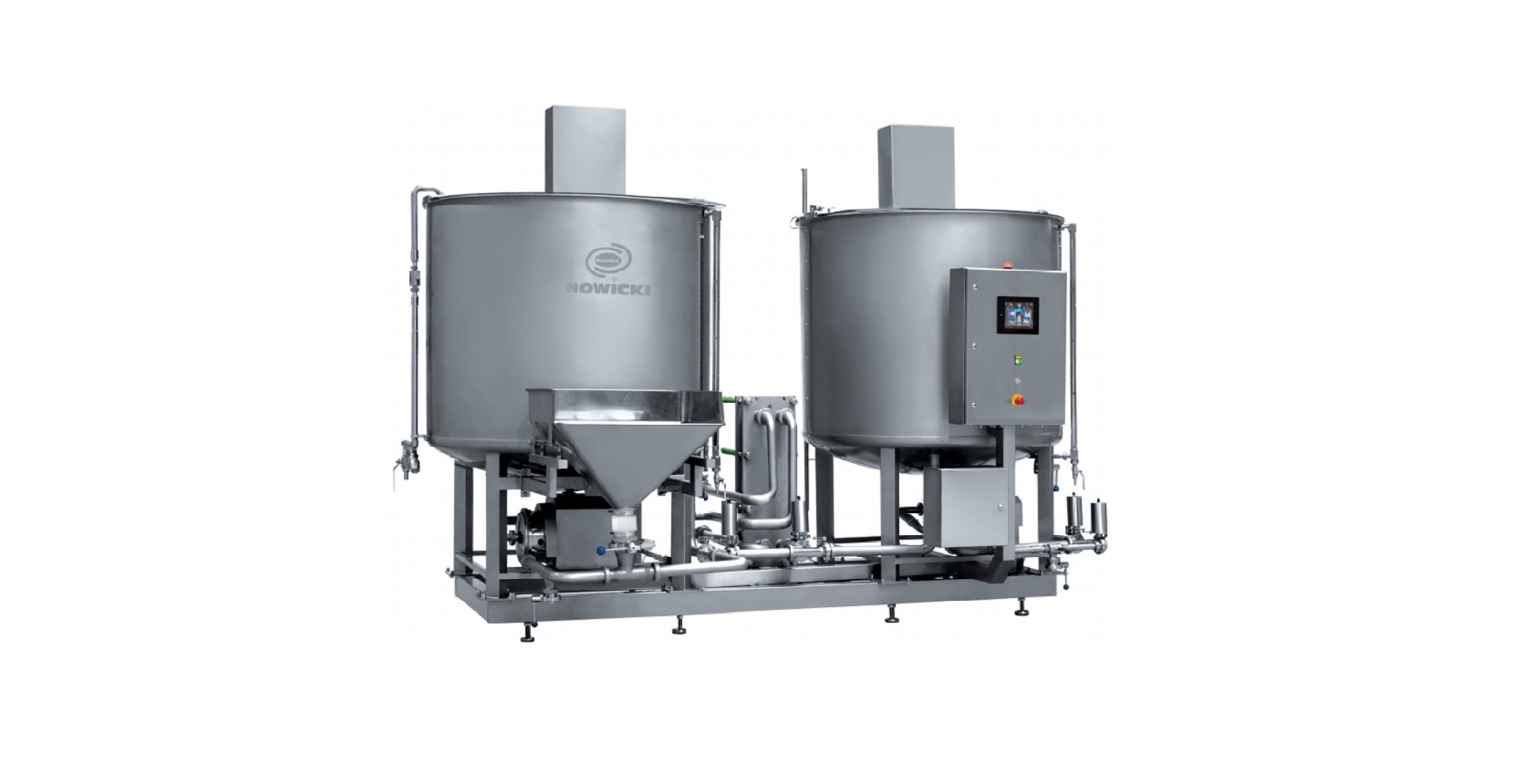

Type


ZMS-750

ZMS-1000

ZMS-1500

ZMS-2000

tank capacity

dm3

2ⅹ750

2ⅹ1000

2ⅹ1500

2ⅹ2000

Installed power

kW

3

8

8

11

dimensions L/W/H

mm

3250/1590/2320

3300/2100/2450

3850/2300/2450

4070/2280/2500

Weight

kg

900

1100

1200

1650
