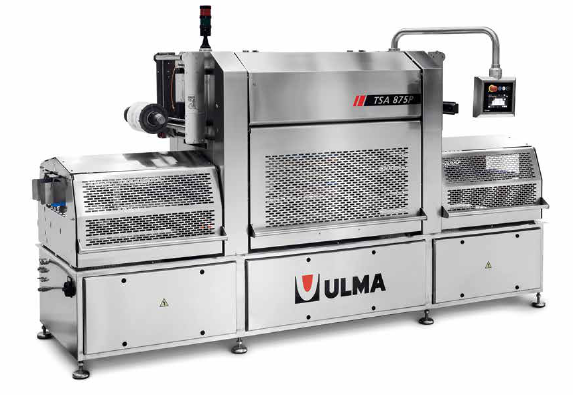

Automatic Skin Traysealer-ULMA

Product Brand: ULMA


Product Introduction:

·       TSA/TSB series packaging machine is a multi-purpose fully automatic tray sealer, mainly used for skin, modified atmosphere (prefabricated tray type) packaging, can make modified atmosphere (MAP) packaging, skin packaging, vacuum packaging.

·       TSB 300 is designed for customers seeking entry-level automated machines with higher production capacity. TSA 540, TSA 680-875 are designed for medium production lines or processes with high pallet positioning accuracy. Depending on the format of the product required for packaging, the sealing process can be one row (single line) or two rows (double line).

·       The tray is automatically transported to the sealing station through the rod in the entrance conveyor, sealed, gas flushed, and then passed to the exit belt.



Main Features:

·       Simple operation, one machine for multiple uses

·       Stainless steel material, clean and hygienic design

·       Easy mold replacement

·       Compact design, small footprint

·       Strong machine structure, uniform sealing force



Application:

Fresh pork, fresh beef, seafood, cooked food, fruits and vegetables, etc.

技术参数

Model

TSA   540

TSA   680

TSA   875

TSA1200

Maximum sealing area

330*540mm

330*680mm

330*875mm

330*1200

Maximum tray height

80/120mm

80/120mm

80/120mm

80/120mm

Core diameter

76mm

76mm

76mm

76mm

Maximum roll diameter

300mm

300mm

300mm

300mm



Electrical Compliance

Voltage 230/400V   50/60Hz

Voltage 230/400V   50/60Hz

Voltage 230/400V   50/60Hz

Voltage 230/400V   50/60Hz

Electrical consumption 11kw 32A/400V-4kw 17A/400V

Electrical consumption 13kw 36A/380V-4kw 17A/380V

Electrical consumption 13.5kW 39A/380V-4.5kw 20A/380V

Electrical consumption 15kW 44A/380V-6kw 26A/380V

Pneumatic consumption

12L/cycle

8L/cycle

10L/cycle

19L/cycle

Approximate weight

1750kg

1400kg

1600kg

3100kg

Machine Body length

2600mm

3017mm

3600mm

4570mm
