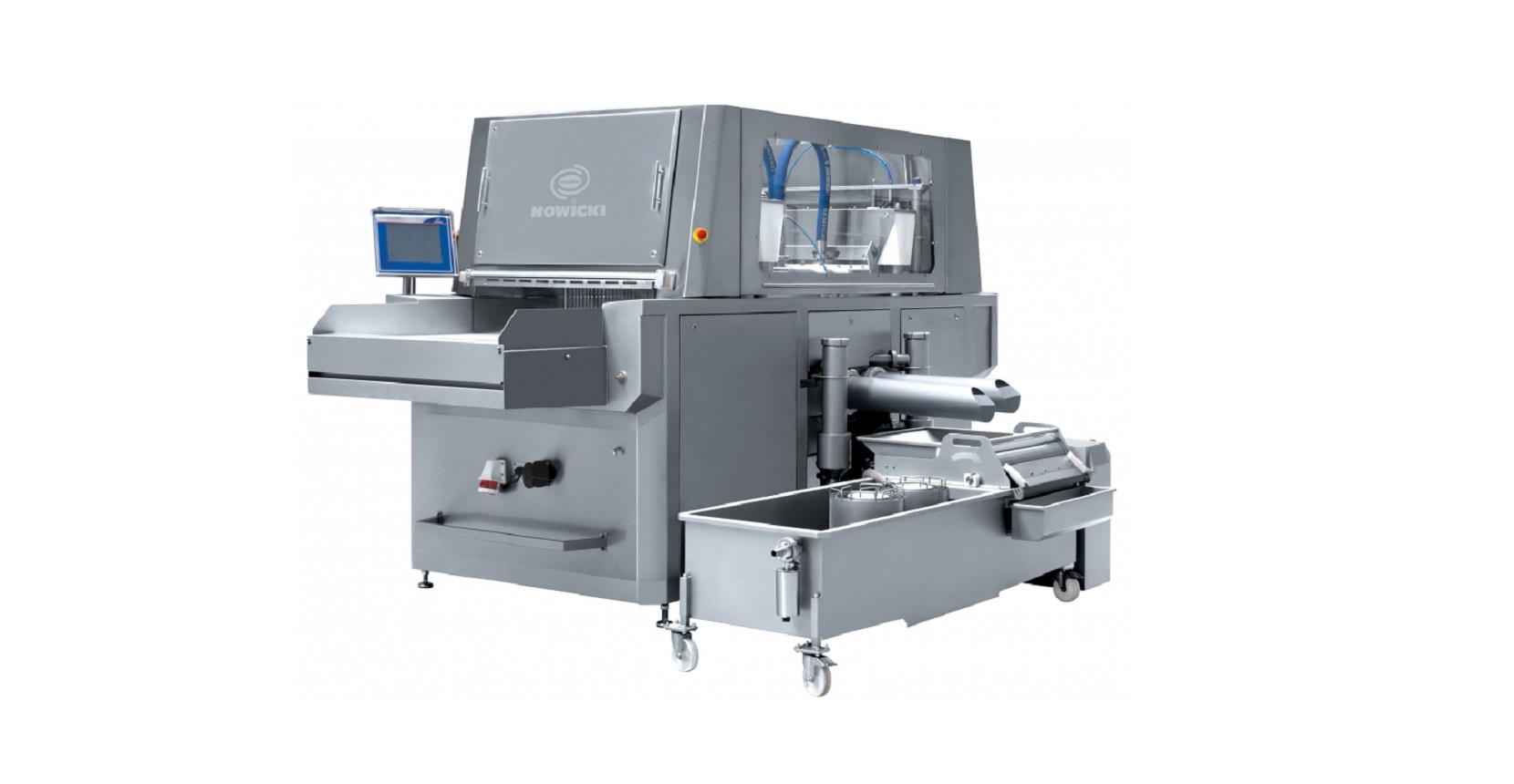

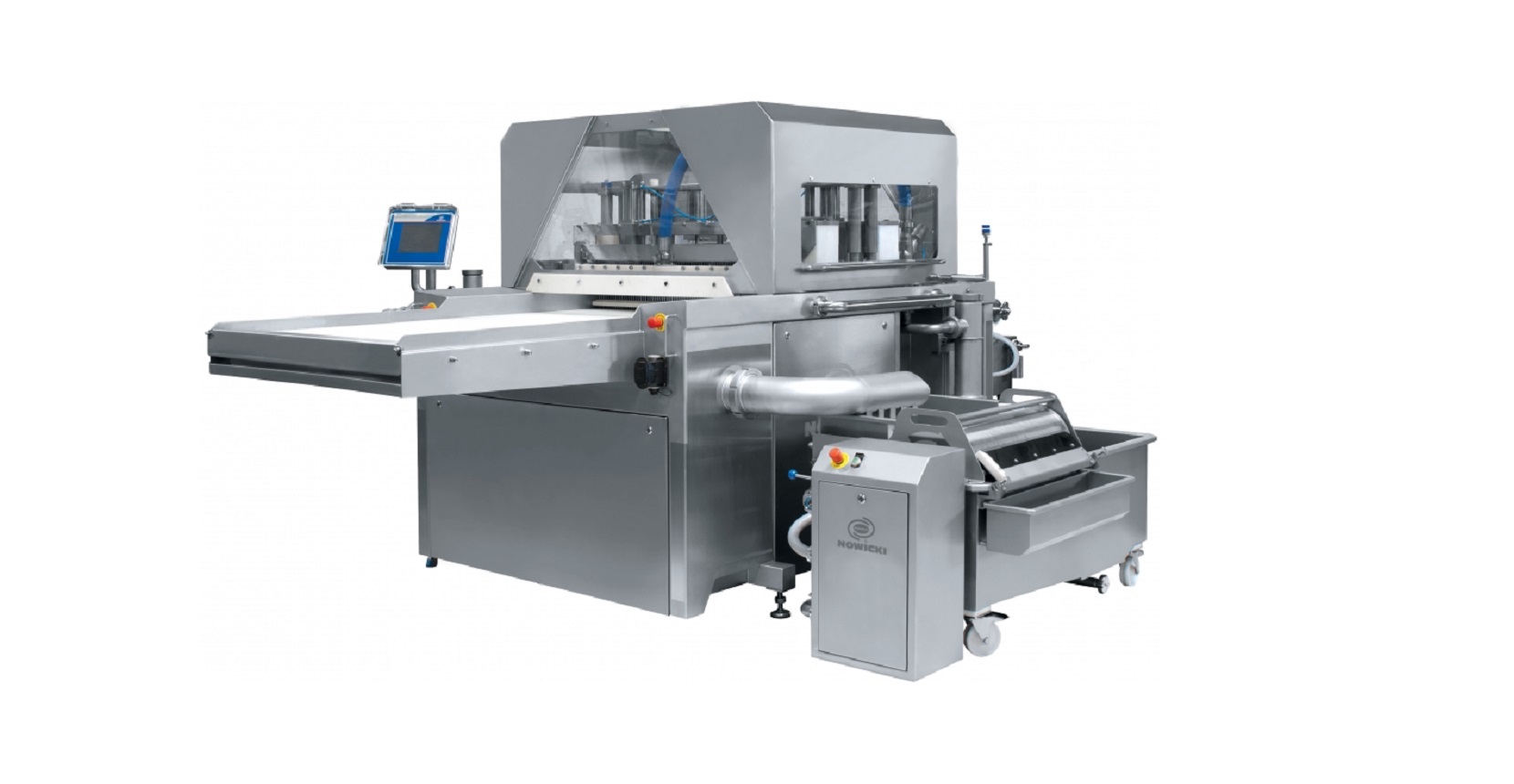

High Speed Injector

Brand: Nowicki


Product Description:

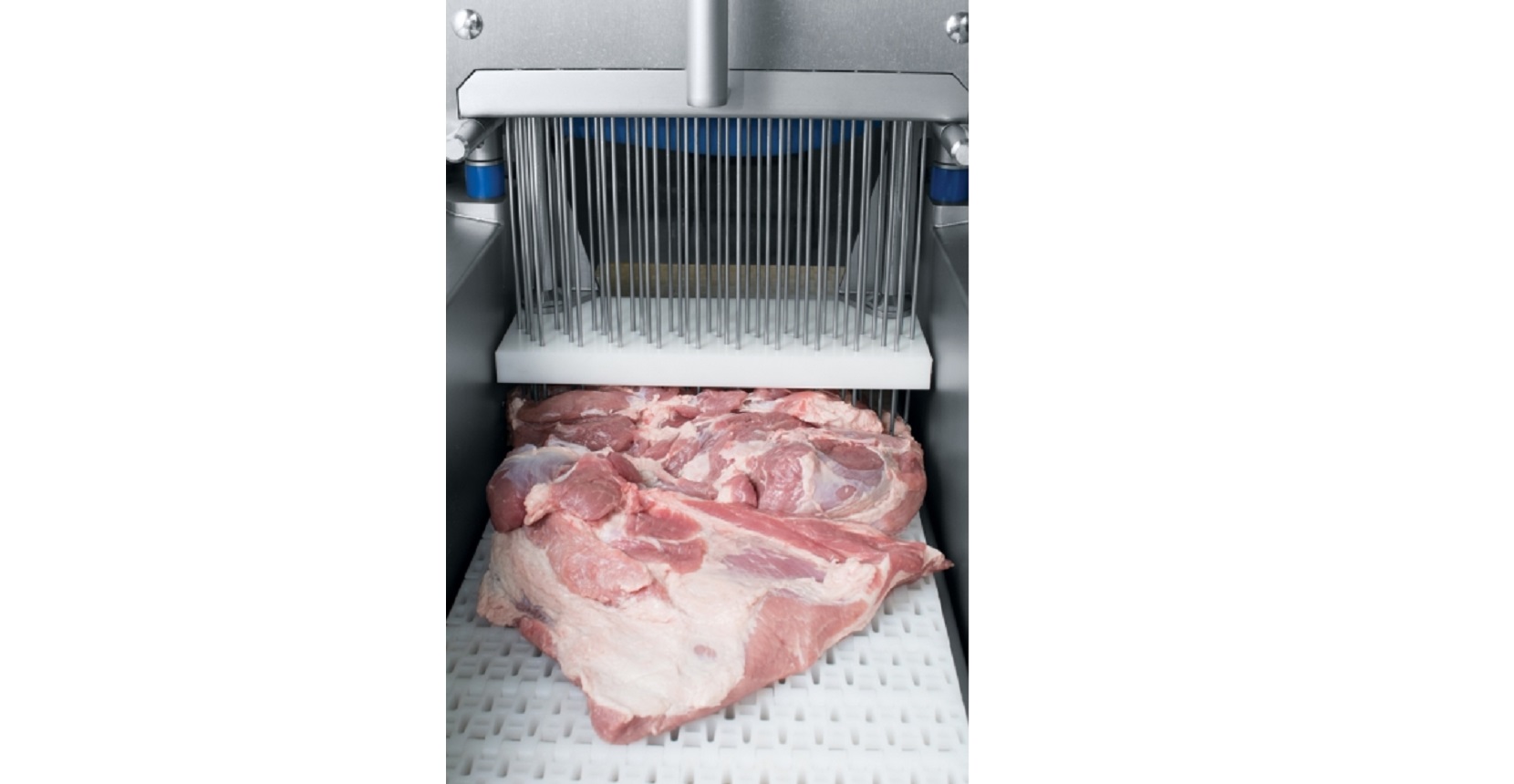

Designed for brine injection of meat, with bone or boneless, meat products, whole poultry and fish and fish fillets.

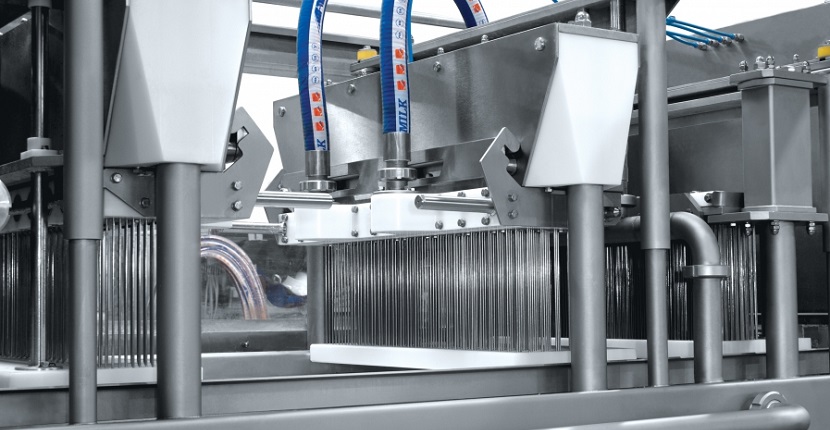

·latest, easy to assemble and disassemble injection head and easy to change for injection head with Ø1.622.53mm needles

· Injection head and conveyor’s servo-drive systems

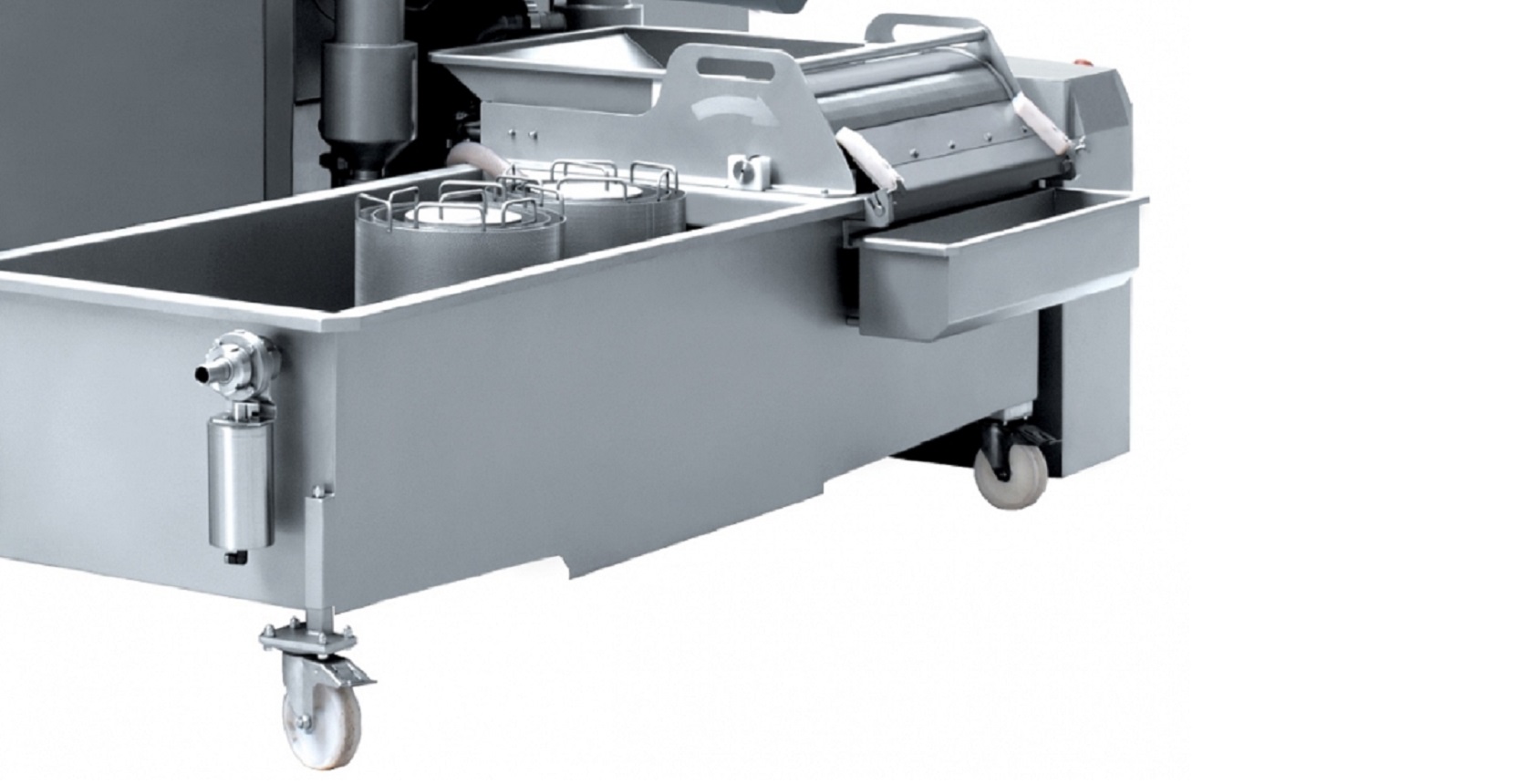

·Unique removal system of brine overflow from surface of raw material

· Ability to inject of the raw material with different thickness from 30 to 80mm

·Continuous measurement of brine temperature

·Unique system of injection head hygiene, reducing to the minimum time of cleaning internal part of injection head


技术参数


Type


MH-75 SAS

MH-117 SAS

MH-212 SAS

MH-336 SAS

Heads quantity

pcs.

1

1

1

1

Number of needles

pcs.

75

117

212

336

Conveyor width

mm

370

450

750

750

Maximum output

kg/h

3000

5000

6000

7000

Volume of injection

%

5÷100

5÷120

5÷120

5÷120

dimensions L/W/H

mm

2300/2000/2100

2400/2040/2200

2980/2550/2200

2900/2550/2200

Weight

kg

1200

1440

1530

1530

Type


MH-424 SAS

MH-700 F/SAS*

MH-516 SAS

MH-424T SAS

MH-660 F/SAS

MH-1480 F/SAS

Heads quantity

pcs.

2

2

3

1

2

Number of needles

pcs.

424/700*

516

424

660

1480

Conveyor width

mm

750

1050

750

600

1050

Maximum output

kg/h

10000

20000

10000

5000

7000

Volume of injection

%

5÷100

5÷100

5÷100

5÷100

5÷100

dimensions L/W/H

mm

3225/2420/

2170

1960/2060/

2170

3825/2485/

2165

3000/2210/

1870

3310/2860/

1950

Weight

kg

2190

2160

2440

1000

1700
