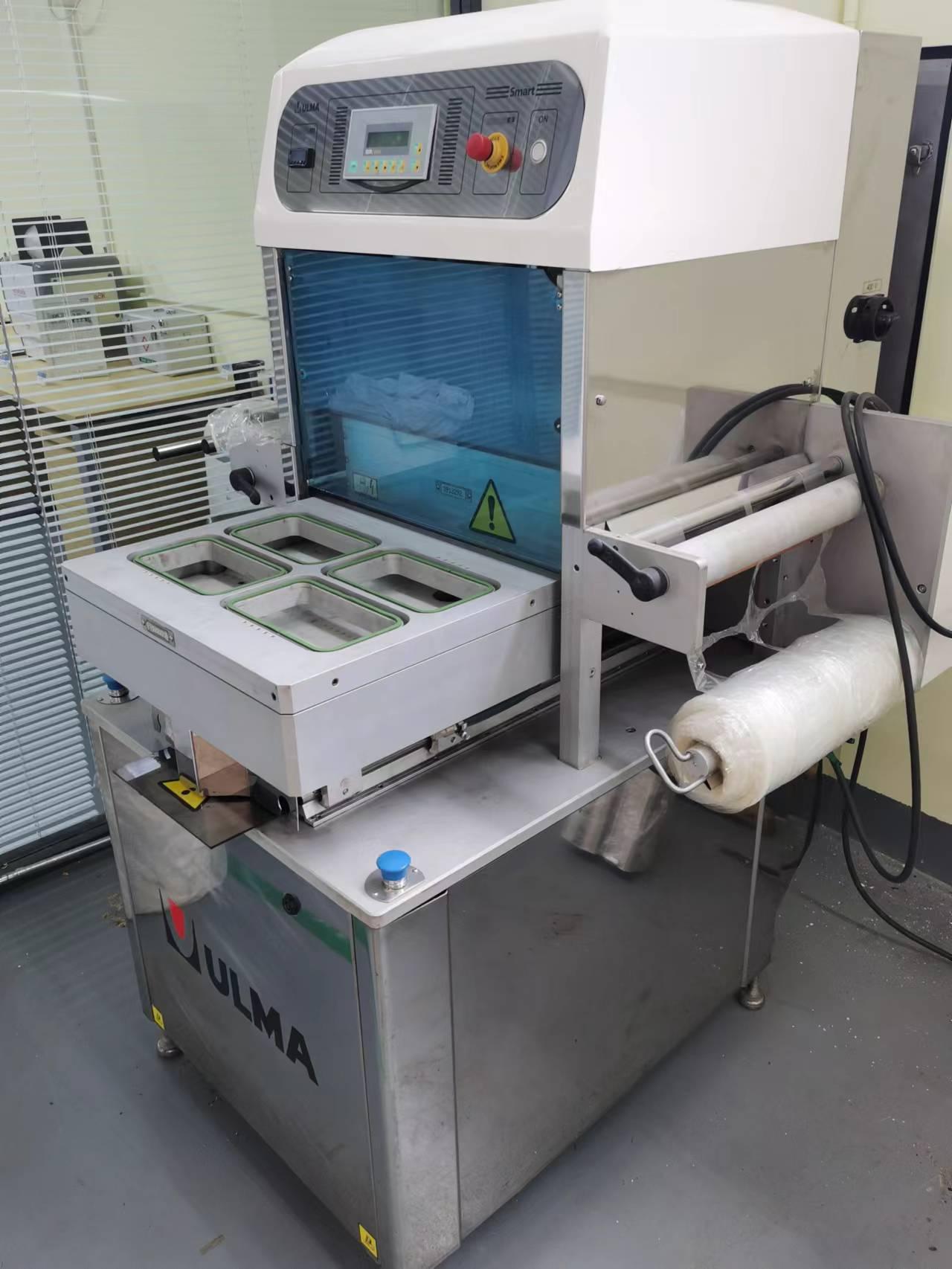

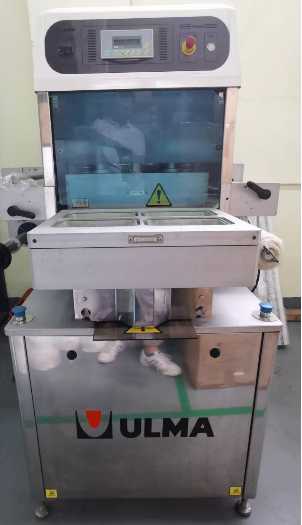

MAP Machine Smart 500

Contact Person:Dick 15979458894


  1. Semi-Automatic MAP Machine:




The SMART series semi-automatic modified atmosphere packaging machine is a high-end packaging equipment developed and designed by ULMA of Spain and applied to various heat-sealed foods. According to the production capacity performance and product requirements, there is a SMART500 model, which can seal trays and films of 224*133 specifications.


  • The machine is made of corrosion-resistant materials

  • Programmable controller

  • Complies with international CE safety regulations and ISO 9001 quality standards

  • Automatic cycle, no tools required

  • Up to 20 settings can be programmed, easy to operate

  • Removable and removable protective cover, easy and simple maintenance


技术参数

Model

SMART   500

Sealing and cutting speed

6-8 cycles/min

Gas flush speed

3-5 cycles/min

Maximum sealing size

380x510mm

Maximum Tray height

80mm

Maximum roll diameter

300mm

Core diameter

76mm

Pump size

100m3/h

Electrical compliance

IP65

Electrical specifications

Voltage:30/400V   50/60Hz

Power consumption:

4kw 8A/380V-14A/220V

Pneumatic consumption

150l/m/6 bars

Approximate weight

550kg
